Baader Planetarium Hyperion Aspheric Modular 36mm 72 degree Eyepiece 2454636

Code: 2454636

Baader Planetarium Hyperion Aspheric Modular 36mm 72 degree Eyepiece 2454636

Please  contact for availability

Baader Planetarium 36mm Hyperion Aspheric 2"-1.25" Eyepiece

  • The aspheric surfaces on the 36mm Baader Hyperion Aspheric Eyepiece eliminates distortion without extra elements, weight, or price.
  • Supplied with a 2" barrel and 1.25" barrel.
  • The 31mm Baader Hyperion Aspheric Eyepiece threads onto the back of most SCT rear cells, producing a rigid connection for imaging.
  • A wide 72º field of view and excellent eye relief (18mm for the 31mm, and 20mm for the 36mm) are hallmarks of this great eyepiece!
  • Fully threaded to accept the full line of Digital T-rings.

PDFPDF



£0.00 £146.00
Earn 0 reward points


Baader Planetarium 31mm Hyperion Aspheric Telescope Eyepiece Features:


The Baader Hyperion Aspheric eyepieces offer freedom from blackouts, kidney beaning, and lack of distortion, and combine with long eye relief to produce a view that is uncommonly comfortable and natural for all users. Even eyeglass wearers and users of popular astigmatism correcting lenses will enjoy the comfort level of the Baader Hyperion Aspherics!
The ultra-wide 72º field of view of these eyepieces are extremely flat and without distortion, and are virtually free of angular magnification distortion.
Baader’s renowned Phantom Group Multi-Coatings and thorough internal baffling produce an extremely bright and high contrast view that is free of scatter.
The Hyperion Aspheric eyepieces accept Televue's Dioptrx astigmatism correcting lenses.
The 31mm Baader Hyperion Aspheric weighs 13.8 ounces or 390 grams.

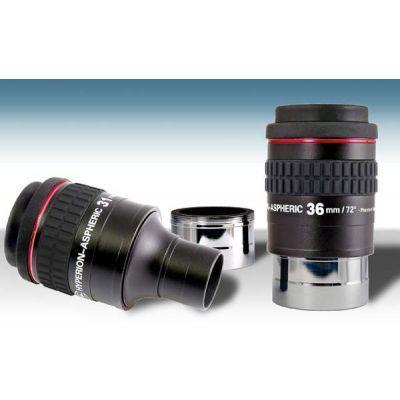

Photo for illustration purposes and shows the 31mm Aspheric eyepiece. 36mm will be supplied only.

WARRANTY: 24 MONTHS



SPECIFICATIONS
EYEPIECE DESIGN
CONNECTIONS
INCLUDED ITEMS
WEIGHT (KG)0.52
EYEPIECE SERIESHyperion
FOCAL LENGTH36 mm
APPARENT FIELD OF VIEW72°
EYE RELIEF (MM)19 mm
AR-COATINGPhantom Coating® Group
PARFOCAL EYEPIECESYes
BARREL SIZE (IN)1¼", 2"
OPTICAL DESIGNAspheric
SPECIALITYEyepiece projection: classical
FIELD STOP DIAMETER45 mm (2"), 30mm (1¼")
FIELD STOP DISPLACEMENT TO REFERENCE PLANE+/- 0 mm
NUMBER OF LENS ELEMENTS6
NUMBER OF GROUPS4
SLIP PROTECT SAFETYClassic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM)84,7 mm
LENGTH OF 1¼" BARREL (MM)23,9 mm
LENGTH OF 2" BARREL (MM)27,5 mm
OUTER DIAMETER59,5 mm
CAMERA THREADM43, SP54
THREADED FOR FILTERSYes
DUSTCAPS1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
EYECUPSfolding eyecup (M43)
