Baader

Baader Complete Set of Hyperion Eyepieces 2454600

Code: 2454600

Baader Complete Set of Hyperion Eyepieces 2454600

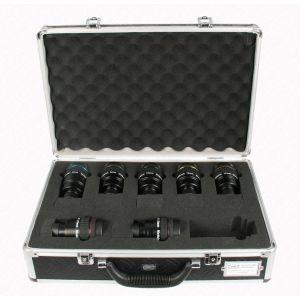

Complete set of Hyperion eyepieces and Carry Case.

f mm = 5/8/10/13/17/21/24

Design: The Hyperion design has has both a 31.7mm (1 1/4") and 50.8mm (2") barrel for fitting into either size focuser or diagonal. Both barrel sizes have a safety groove for safe use in your telescope. Each Hyperion features Baader's PHANTOM-GROUP Multi-Coatings for maximum light transmission and the ultimate in image contrast. There are two photographic threads on each Hyperion, M43 and SP54. These threads are located under the rubber eye-cap, or rather beneath the thread protecting ring which is made of high-quality and aging-resistant silicone rubber

PDFPDF


$0.00 $908.39
Earn 0 reward points

Baader Phantom Group Coating: Baader Phantom Group Coating is a 7-layer broadband coating with extremely low residual reflection. The term "Group" refers to the fact that for each type of glass used in the Hyperion eyepieces, the respective effective anti-reflection layer is applied.
All these different anti-reflection coatings on each lens surface have then been optimized to be most effective where the human eye has its highest sensitivity at night - at about 520 nm - in the green region of the spectrum.

Adapting your Hyperion: The Hyperion can be combined with a Baader adaptor ring to mount a camera directly onto the eyepiece. In addition, there are a large number of Baader adapting rings and fittings to make the Hyperion suitable for (almost) every task in astronomical - and nature - photography, as a high quality projection optic or as a tele-extender. The Hyperions work as well for photographic applications as they do for visual use.



WARRANTY: 24 MONTHS



INCLUDED ITEMS
CONNECTIONS
EYEPIECE DESIGN
FOCAL LENGTH5, 8, 10, 13, 17, 21, 24 mm
APPARENT FIELD OF VIEW68°
EYE RELIEF (MM)20 mm
AR-COATINGPhantom Coating® Group
PARFOCAL EYEPIECESYes
BARREL SIZE (IN)1¼", 2"
OPTICAL DESIGNModular
SPECIALITYEyepiece projection: afocal, Eyepiece projection: classical
FIELD STOP DIAMETERvaries for each focal length
FIELD STOP DISPLACEMENT TO REFERENCE PLANEvaries for each focal length
NUMBER OF LENS ELEMENTS8
NUMBER OF GROUPS5
SLIP PROTECT SAFETYClassic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM)varies for each focal length
LENGTH OF 1¼" BARREL (MM)24 mm
LENGTH OF 2" BARREL (MM)varies for each focal length
OUTER DIAMETER58 mm
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)Thread, M43
INNER CONNECTION (LENS SIDED)Thread, M28,5, M48
OUTER CONNECTION (LENS SIDED)Barrel, 1¼", 2" (50,8mm)
CAMERA THREADM43, SP54
THREADED FOR FILTERSYes
DUSTCAPS1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
EYECUPSfolding eyecup (M43), winged eyecup (M43)
INCLUDED ACCESSORIESEyepiece case
