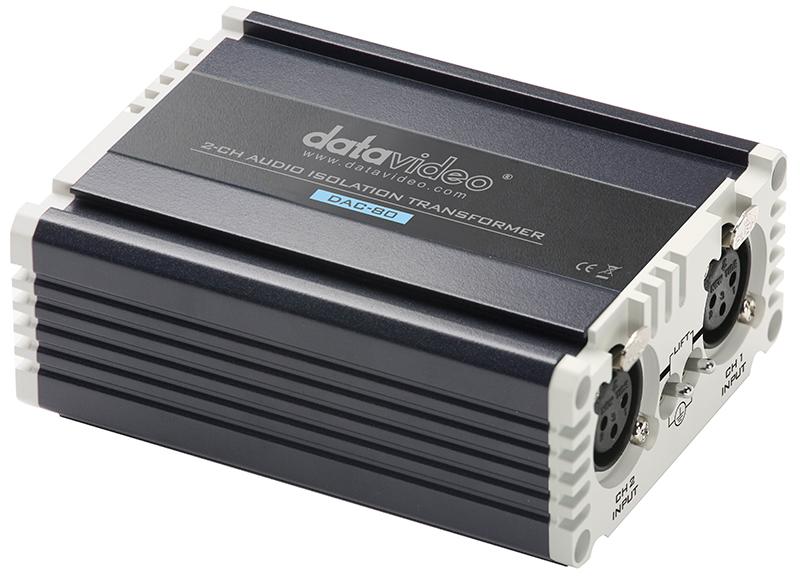

Datavideo DAC-80 2 Channel Audio Isolation Transformer

Code: DATA-DAC80

Datavideo DAC-80 2 Channel Audio Isolation Transformer



  • Easy to use
  • Eliminate audio noise caused by ground loops
  • Designed for low signal loss and low distortion
  • Passive device (No power required)


  • Click icon below EXTENDED WARRANTY: ONLINE REGISTRATION




£0.00 £126.00
Earn 0 reward points

DAC-80 is designed to remove hum and buzz created by ground loops.

Normal voltage differences in the system grounding points between different pieces of equipment cause small AC power currents to flow in the shield of audio cables.

Capacitance between a power transformer's primary and secondary windings introduce signals to the circuit ground which will also create small current flows in the cable shield.

Either of these problems will create hum in audio signals. DAC-80 breaks the interequipment ground path and greatly increases the rejection in the input circuits while remaining transparent to the audio signal.


2 Channel Audio Isolation Transformer





Easy to use

Eliminate audio noise caused by ground loops







Very low distortion and close to zero attenuation

Normal voltage differences in the system grounding points between different pieces of equipment cause small AC power currents to flow in the shield of audio cables. Either of these problems will create hum in audio signals. DAC-80 breaks the interequipment ground path and greatly increases the rejection in the input circuits while remaining transparent to the audio signal.





No Power needed

Designed for low signal loss and low distortion



Workflow





SPECIFICATIONS


DAC-80 2 Channel Audio Isolation Transformer
Impedance

600Ω+/- 10% (Input & output)

Bandwidth Frequency

20Hz ~20KHz ±0.5dB

THD: 1 KHz

< 0.015% @ +4dBu; 20Hz: 0.05% @+4dBu

Insertion loss

<0.5dB

Turns Ratio

1:1

Input

2 XLR Audio Input Channels

Output

2 XLR Audio Output Channels

Dimension (LxWxH)

85 x 112 x 45 mm

Weight

0.5 kg

Operating Temp. Range

0~40 °C

What's in the Box

1 x DAC-80
1 x Thank You Card
